Quick Overview

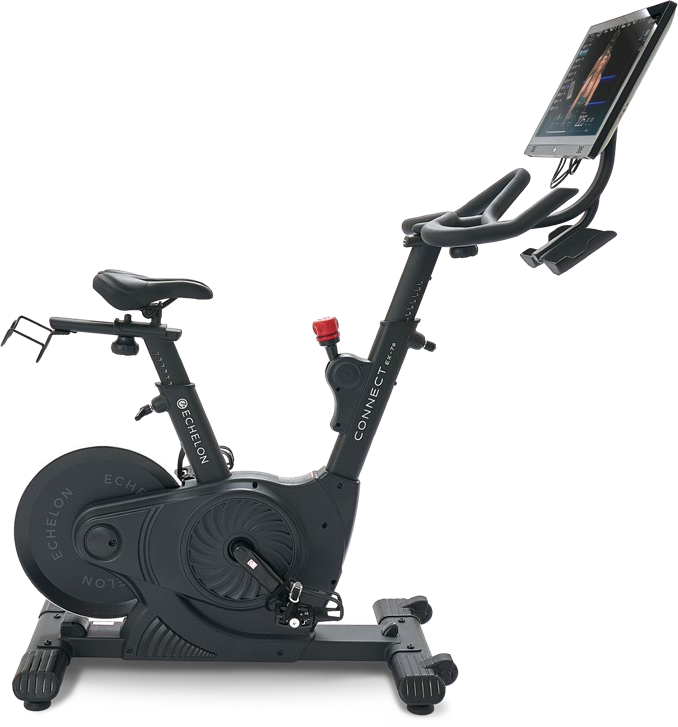

The Echelon EX-7s Connect Bike pairs a 24-inch class HD touchscreen with 32 levels of magnetic resistance and an upgraded vented racing-style seat. Flip the screen 180 degrees to reach more than 4,000 off-equipment workouts including core, yoga, and kickboxing, or stay in the saddle for live and on-demand cycling classes.
- 24″ Class HD Touchscreen with 180° Flip Rotation
- 32 Levels of Magnetic Resistance
- Upgraded Vented Racing-Style Seat
- Elevated Bullhorn Handlebars with Elbow Rests
- Quad-Adjustable Seat and Handlebars
- Mounted Dumbbell Rack (weights sold separately)
Specs
- Model – ECHEX-7S
- Power Requirements – 110V AC or 240V (2 ports, front and rear frame)
- Internet Requirements – Ethernet wired or Wi-Fi (download > 25 Mbit/s; upload > 512 Kbit/s)
- Touchscreen – 24″ Class HD touchscreen with 180° pivot adjustment
- Audio – User-facing dual speakers, Bluetooth® audio, standard 3.5 mm audio jack
- Workout Data Displayed – Live Leaderboard, Watts, RPM, MPH, Calories, Distance, Time, Heart Rate, Resistance Level
- Heart Rate – Bluetooth® telemetry
- Adjustability – Quad-adjustable: seat up/down, seat fore/aft, handlebars up/down, handlebars fore/aft
- Pedals – Commercial-grade SPD clips and toe cage
- Crank – Commercial grade
- Drive System – Kevlar Poly-V power drive belt
- Resistance System – Electronic magnetic eddy current brake with neodymium rare earth magnets
- Safety Brake – Simple brake lever
- Water Bottle Holders – 2, heavy-duty comfort-coated steel
- Dumbbell Holders – 2 included (weights sold separately)
Dimensions
- Footprint – 37″ x 20″ / 95 cm x 51 cm
- Product Weight – 124 lbs / 56 kg
- User Height Range – 4’5″ to 6’8″ / 134 cm to 203 cm
- Maximum User Weight – 300 lbs / 136 kg
- Warranty – 2 Years Parts / 2 Years Labor; home and commercial up to 6 hours use per day
